VICP composite insulation board prefabricated concrete exterior wall panel system

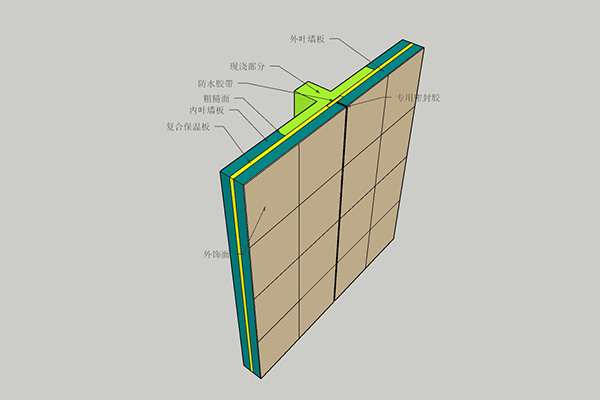

A prefabricated concrete exterior wall panel, abbreviated as VICP sandwich exterior wall panel, is produced in a factory and consists of inner leaf wall panels, outer leaf wall panels, intermediate VICP vacuum insulated composite insulation panels, and tie systems. It is divided into VICP composite insulation precast concrete sandwich shear wall panels and VICP composite insulation precast concrete sandwich external wall panels.

Main construction techniques:
Process I: Summarize, sort, and deepen the design layout based on the split wall panel drawings provided by the component factory; After determining the size and quantity of VICP composite insulation boards, they are prefabricated and processed into finished products in the factory;
Process II: Send to the component factory for processing and pouring into finished wall panels;
Process III: After the component factory completes production and maintenance, it is transported to the construction site for installation;

Process IV: Waiting for the subsequent coating and finishing process construction.
