VICP composite insulation board thin plastered external wall insulation system for ultra-low energy buildings

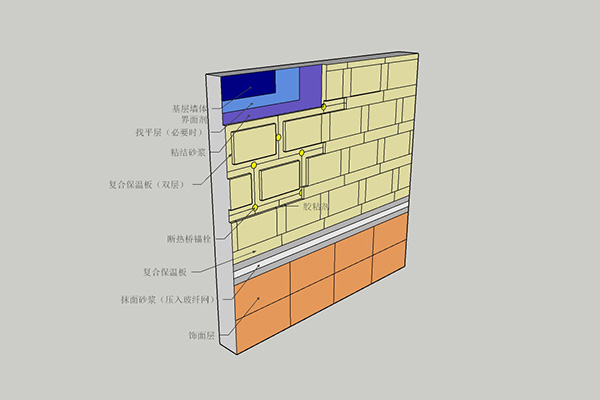

Composed of leveling layer, bonding layer, VICP vacuum insulated composite insulation board (double layer), VICP vacuum insulated composite insulation board (single layer), protective layer, and bridge breaking anchor bolt. The leveling layer adopts polymer cement waterproof mortar or ordinary waterproof mortar; The plaster layer in the protective layer should be pressed into the fiberglass mesh using plaster mortar; The decorative layer in the protective layer adopts lightweight decorative materials such as coatings, decorative mortar, and flexible tiles.

1718679247180d21

17186792472d3156

Performance characteristics:

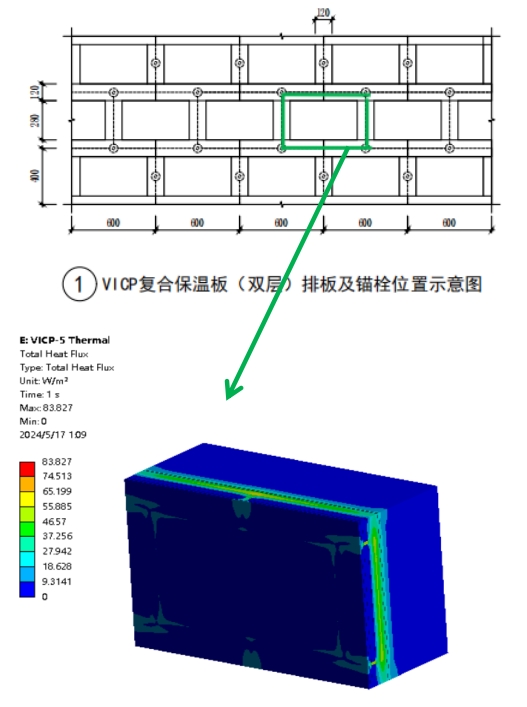

According to the calculation method for thermal resistance and heat transfer coefficient of building components and building units (GB/T 20311-2021), numerical calculations are carried out.
This system effectively solves the thermal bridge problem at the junction of composite insulation boards and is one of the preferred insulation materials for ultra-low energy building exterior wall insulation systems.
