Using nano inorganic fibers as the core material, the patented technology effectively locks in the flow of gas molecules and controls heat conduction; And wrapped with inorganic insulation slurry, the board shaped product is made by molding, curing, curing and other processes.
Product Introduction:
Product safety/fire rating: The fire rating is A; Combining a professional and systematic construction plan system can effectively prevent wall bulging, cracking, and detachment.
Product features: Compared to traditional insulation materials, the product performance has increased the building yield by 2% to 6%.
Performance metrics:

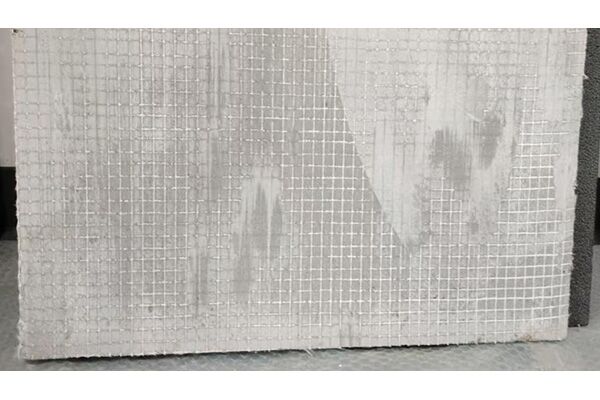

Nano inorganic fiber composite insulation board
| Project | Performance metrics | |||
| Type A | Type B | Type C | ||
| Equivalent thermal conductivity (average temperature 25 ℃± 2 ℃) [W/(m · K)] | ≤0.005 | ≤0.008 | ≤0.012 | |
| Combustion performance level | Grade A (A2) | |||
| Specifications and Dimensions | Length（mm） | Width（mm） | Thickness（mm） | |
| 600 | 400 | 25、30、40、50 | ||
| 400 | 300 | |||
| 400 | 200 | |||
| The specifications and dimensions can be customized for production according to customer needs | ||||
Application fields:
Areas that require thermal insulation, such as new construction, existing building renovation projects, prefabricated building projects, and ultra-low energy buildings.
