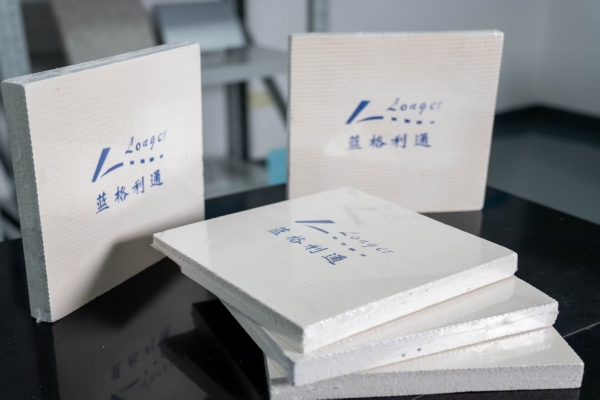

Using ultrafine inorganic fibers as the core material, the patented technology effectively locks in the flow of gas molecules and controls heat conduction; VICP composite insulation board is a plate-shaped product made by encapsulating inorganic insulation materials, molding, curing, and other processes.
Product Introduction:
Product safety/fire rating: The fire rating is A; Combining a professional and systematic construction plan system can effectively prevent wall bulging, cracking, and detachment.
Product features: The product performance is relatively 2% to 6% higher than that of traditional material construction in terms of building yield.
Performance metrics:
Performance indicators of VICP composite insulation board
| Project | Performance metrics | |||
| Type I | Type II | Type III | ||
| Equivalent thermal conductivity (average temperature 25 ℃± 2 ℃) [W/(m · K)] | ≤0.005 | ≤0.008 | ≤0.012 | |
| Combustion performance level | Grade A (A2) | |||
| Specifications and Dimensions | Length（mm） | Width（mm） | Thickness（mm） | |
| 600 | 400 | 15、18、20、25、30、40、45、50、60 | ||
| 400 | 300 | |||
| 400 | 200 | |||
| The specifications and dimensions can be customized for production according to customer needs | ||||
Application fields:
New construction, existing building renovation projects, prefabricated building projects, decorative insulation integrated panels, ultra-low energy consumption buildings and other fields that require insulation and heat preservation.
