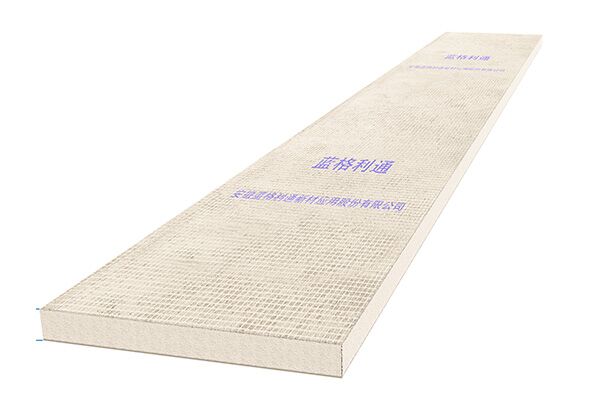

Using vacuum insulation board as the core material, arranged at intervals along the length direction, covered with insulation slurry on six sides, and equipped with a single-layer glass fiber mesh or steel wire mesh reinforced vacuum insulation outer template in the inner and outer insulation slurry, abbreviated as VICP composite outer template.
Performance metrics:
Performance requirements for VICP composite external template
| Project | Performance metrics | ||
| Mass per unit area (kg/㎡) | ≤40 | ||
| Tensile bonding strength (MPa) | Original strength | ≥0.10 | |
| Water resistance strength | |||
| Freeze thaw resistance strength | |||
| Bending load (N) | ≥2000 | ||
| External impact resistance (J) | ≥10 | ||
| Specifications and Dimensions | Length（mm） | Width（mm） | Thickness（mm） |
| 2900、3000、3100、3200 | 600、400 | 40、45、55、60 | |
| The specifications and dimensions can be customized for production according to customer needs | |||
Product Features:

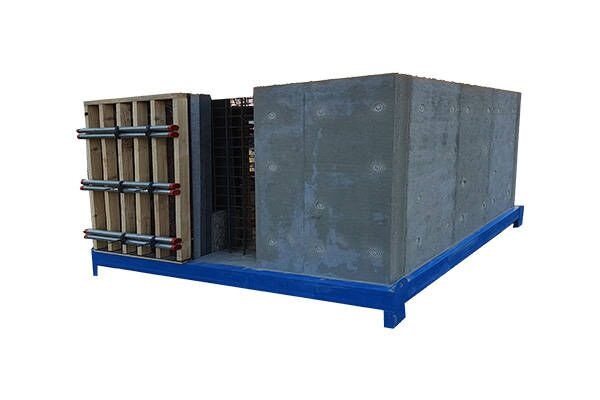

The VICP composite external formwork insulation construction is carried out synchronously with the main construction of the building, using traditional construction techniques to save costs and time. The integrated construction using VICP composite external formwork can directly enter the decoration stage without external insulation, reducing construction costs.
