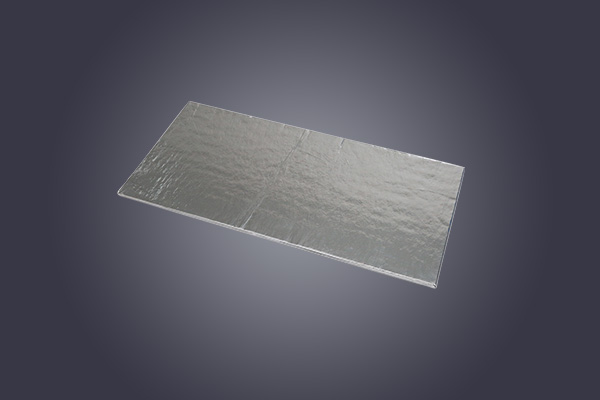

Vacuum insulation board for refrigerators
Vacuum Insulation Pannel (VIP) is an insulation material made based on the principle of vacuum insulation. It combines the advantages of vacuum insulation and microporous insulation methods, thus greatly reducing heat conduction, convection, and radiation in insulation effect, isolating heat transfer, and possessing good insulation, thermal insulation, and cold insulation performance.

Product Introduction:
The thermal conductivity of a new type of VIP board produced using improved materials and processes for refrigerators can be controlled below 1.6mW/m.K. According to customer needs, we can provide short cut thread core materials, wet centrifugal cotton core materials, dry centrifugal cotton core materials, and powder core materials. Barrier film can be provided with double-sided aluminum-plastic film, double-sided aluminum plated film, and anode and cathode film.


Specification and model:

classification

project

Range

error

remarks

Specifications

length

30-2000mm

±3mm


width

20-1700mm

±3mm


thickness

3-30mm

±1mm


density

200-350kg/m3

±10kg/m3



Application field:
Refrigerator, freezer.
