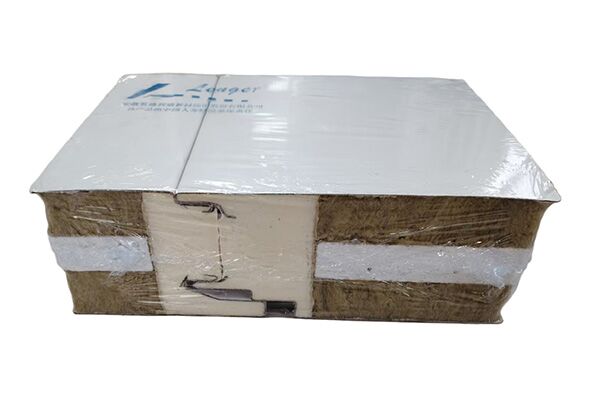

A sandwich panel with VICP vacuum insulated composite insulation board as the core material, rock wool strips as the protective layers on both sides, and composite metal panels on the inner and outer surfaces, abbreviated as VICP metal face sandwich panel.
Performance metrics:
Performance indicators of VICP metal faced sandwich panel
| Project | Performance metrics | ||
| Tensile bonding strength (MPa) | ≥0.10 | ||
| Peeling performance (bonding area ratio of peeling surface) | ≥85% | ||
| Structural performance | Deflection≤L0/150，Uniformly distributed load≥0.5kN/m2 | ||
| Heat transfer coefficient[W/(m²·K)/] | Should meet the design requirements | ||
| Combustion performance level | Rock wool strip | Grade A (A1) | |
| VICP composite insulation board | Grade A (A2) | ||
| Fire resistance limit (h) | ≥ 1.0 and should meet the design requirements | ||
| Specifications and Dimensions | Length（mm） | Width（mm） | Degree（mm） |
| 1400、2400、2800、3000、3200 | 600 | 100 | |
Usage requirements:
1. VICP metal faced sandwich panel is a metal faced sandwich panel product that uses VICP vacuum insulated composite insulation board, rock wool, hard polyurethane and other prefabricated composite panels as the core material.
2. The flat metal plates in VICP metal sandwich panels can be made of color coated steel plates, aluminum alloy plates, stainless steel plates, etc.
3. The core material of VICP metal sandwich panel is composed of rock wool and VICP composite insulation board.
Application fields:
Mainly used for industrial plant walls in ultra-low energy buildings.
