System Instructions

A non load bearing enclosure system composed of VICP vacuum insulated composite aerated concrete slabs, protective layers, connecting nodes, and related supporting materials. VICP composite aerated wall system for short.

Product Introduction ---VICP Vacuum Insulated Composite Aerated Concrete Board

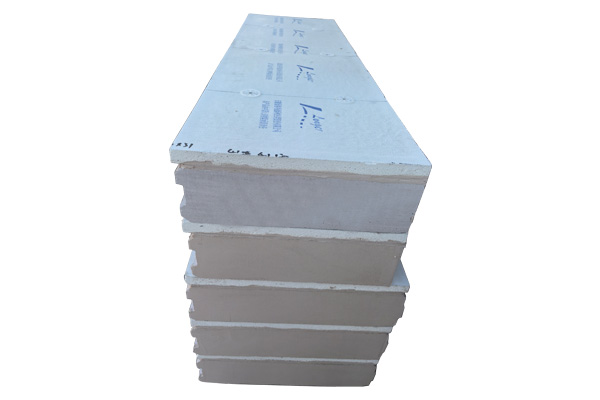

VICP composite aerated concrete panel is a non load bearing exterior wall panel with insulation and enclosure functions, which is prefabricated and produced in the factory by fixing the vacuum insulated composite panel on the outside of the autoclaved aerated concrete wall panel with bonding mortar and special anchoring devices, using vacuum insulated composite insulation panel as the insulation layer.

Advantages: Low overall cost, thin walls, and high occupancy rate.

Thermal resistance value: thickness of 235mm VICP composite aerated concrete slab (including 200mm ALC board and 35mm VICP composite insulation board), measured thermal resistance value: 2.96㎡.k/w, which can meet the energy-saving requirements of Shandong Public Construction 78.
